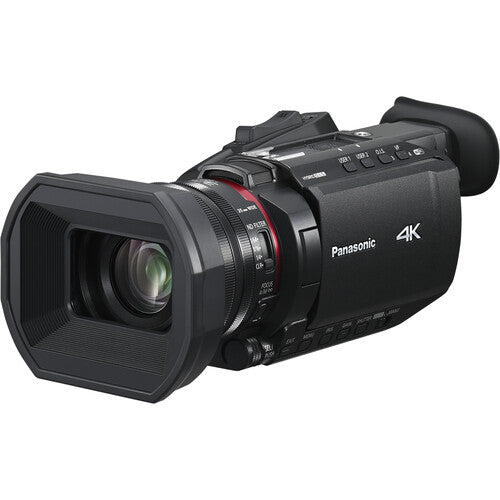

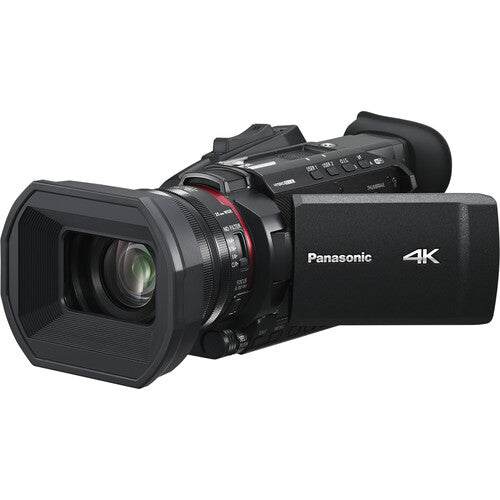

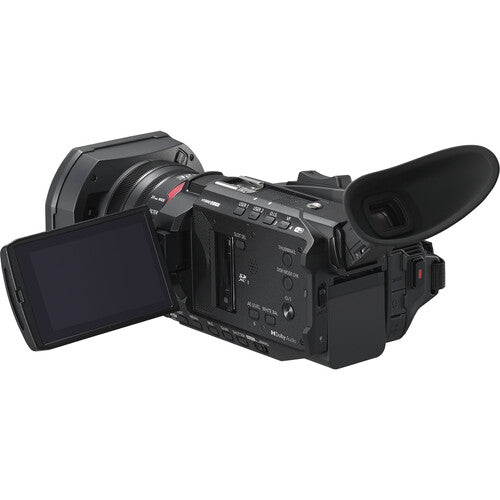

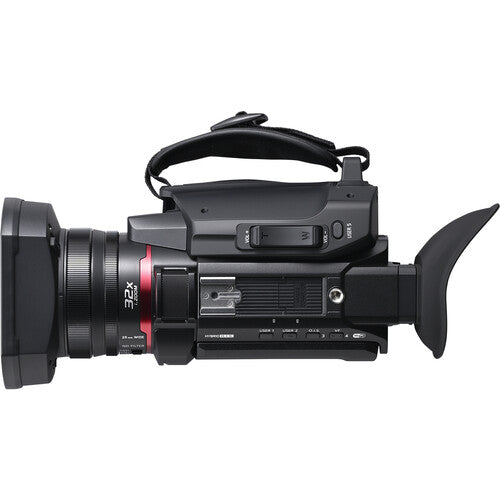

Overview of the Panasonic HC-X1600 UHD 4K HDMI Camcorder
Introduction
The Panasonic HC-X1600 UHD 4K HDMI Camcorder is a powerful and portable 4K camcorder designed for professional videographers, content creators, and event shooters. Packed with advanced imaging features, easy-to-use controls, and flexible connectivity, it offers a compelling balance of performance and mobility—making it ideal for documentaries, corporate video, live events, and broadcast-quality production.
UHD 4K Recording and Sensor Performance
At its core, the HC‑X1600 records UHD 4K video at up to 60 frames per second, delivering crisp and detailed footage. Its high‑performance 1/2.5‑inch MOS sensor captures excellent color fidelity and dynamic range, producing vibrant results in both bright and challenging light conditions. This combination of high frame rate and resolution ensures smooth, cinematic output suitable for modern video workflows.
Powerful Zoom and Optics
The camcorder features a wide‑angle 25 mm lens (35 mm equivalent) with 24x optical zoom, which enables flexible framing—from wide establishing shots to tight telephoto capturing without lens changes. For extended reach, Panasonic’s intelligent zoom functions can further magnify the image in 4K and Full HD modes, allowing maximum versatility for on‑the‑fly shooting at events, sports, and nature subjects.
Advanced Image Stabilization and Autofocus
To help maintain stable footage, the HC‑X1600 integrates Hybrid 5‑axis Optical Image Stabilization (OIS) that dramatically reduces camera shake when shooting handheld. Its autofocus system and real‑time subject tracking help keep moving subjects sharp, reducing the need for constant manual focus adjustments. These features are especially useful in run‑and‑gun scenarios or dynamic shooting environments.
Professional Recording Formats and Slow Motion
This camcorder supports a range of recording options with high‑bitrate codecs, providing flexibility for different production workflows. It also offers Full HD slow‑motion recording at up to 120 fps, enabling creative storytelling with smooth, slow playback when needed. Multiple bitrate options ensure the right balance between file size and image quality for projects of all types.
Connectivity and Workflow Features
The HC‑X1600 includes professional connectivity such as a full‑size HDMI output for external monitoring or recording, dual SD card slots for relay or simultaneous recording, and dedicated audio inputs with manual control. The articulating touchscreen LCD and intuitive menu system make shooting and navigation straightforward, whether you’re on a tripod, handheld, or using a gimbal.
Panasonic HC-X1600 Specs
| Sensor Resolution |
Effective: 8.29 Megapixel
|
| Image Sensor |
1/2.5"-Type MOS
|
| Image Stabilization |
Digital
|
| Built-In ND Filter |
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
|
| Capture Type |
Stills & Video
|
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/8000 to 1/6 Second in Video Mode
|
| Sensitivity |
f/1.8 at 4 lux
|
| Minimum Illumination |
1.5 Lux
|
| White Balance |
Range: 2000 to 15,000K Presets: ATW, Auto
|
Lens
| Focal Length |
4.12 to 98.9mm (35mm Equivalent: 25 to 600mm)
|
| Optical Zoom Ratio |
24x
|
| Max Digital Zoom |
2x 5x 10x
|
| Maximum Aperture |
f/1.8
|
| Minimum Aperture |
f/4
|
| Minimum Focus Distance |
Not Specified by Manufacturer
|
| Filter Size |
62 mm
|
| Control Rings |
Focus Zoom
|
| Focus Control |
Autofocus Manual Focus
|
Video Capture
| Internal Recording Modes |
AVCHD 4:2:0 8-Bit 1920 x 1080p at 50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps MOV 4:2:0 10-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps MOV 4:2:2 10-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps MOV 4:2:0 8-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps MP4 4:2:0 10-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps MP4 4:2:0 8-Bit UHD 4K (3840 x 2160) at 23.98/25/29.97 fps 1920 x 1080p at 23.98/50/59.94 fps
|
| External Recording Modes |
4:2:2 10-Bit via HDMI UHD 4K (3840 x 2160) at 23.98/25/29.97/50/59.94 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 720 x 576p at 50 fps 720 x 480p at 59.94 fps
|
| Fast-/Slow-Motion Support |
Yes
|
| Built-In Microphone |
Stereo
|
| Audio Recording |
AVCHD, MP4: 2-Channel 16-Bit 48 kHz
|
| IP Streaming |
H.264, RTMP, RTMPS, RTP, RTSP 1920 x 1080 1280 x 720 640 x 360 320 x 180
|
Interface
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC (UHS-I) [512 GB Maximum]
|
| Video I/O |
1x HDMI (Unspecified Signal) Output
|
| Audio I/O |
2x XLR 3-Pin Mic/Line (+48 V Phantom Power) Input 1x 1/8" / 3.5 mm TRS Stereo Microphone Input 1x 1/8" / 3.5 mm TRS Stereo Headphone Output
|
| Power I/O |
1x USB-C (9VDC at 3 A) Input
|
| Other I/O |
1x 2.5 mm Sub-Mini (Remote) Control 1x USB-C
|
| Wireless |
2.4 / 5 GHz Wi-Fi, Wi-Fi (802.11a/b/g), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
|
| Mobile App Compatible |
Yes: Android & iOS App Name: HC ROP
|
| Global Positioning (GPS, GLONASS, etc.) |
No
|
Monitor
| Display Type |
Primary Monitor: Articulating 3.5" Touchscreen LCD
|
Viewfinder
| Type |
Electronic (OLED)
|
| Resolution |
1,770,000 Dot
|
Focus
| Focus Mode |
Automatic, Manual Focus
|
Power
| Battery Type |
Panasonic AG-VBR Series
|
| Power Consumption |
12.3 W
|
General
| Shoe Mount |
1x Cold Shoe
|
| Built-In Video Light |
No
|
| Dimensions (W x H x D) |
5.1 x 3.7 x 10.5" / 129 x 93 x 267 mm (With Included Lens Hood)
|
| Weight |
1.87 lb / 0.85 kg (Body Only)
|
